FRAME MATERIAL

Aluminium

FRAME

6062 aluminium, 148x12 mm thru axle, internal cable routing, post mount 180 mm

FORK

SR Suntour Raidon Air. 100x15mm, 100mm travel

TRAVEL FORK

100 mm, 80 mm

MOTOR

Bosch Performance Line CX, 36 V / 250 W / 85 Nm

BATTERY WATT-HOURS

500 Wh

BATTERY AMPERE HOURS

13,4 Ah

DISPLAY

Bosch Purion, LCD display with walk assist

SHIFTER

Shimano SLX 7000

REAR DERAILLEUR

Shimano Deore XT 8000, 11-speed

SPROCKET

Shimano SLX CSM7000 11-S 11-46T

CHAIN

Shimano CN-HG601, 11-speed

CRANKSET

FSA CK-745

BOTTOM BRACKET

Integrated in Drive Unit

TRANSMISSION OF DRIVE

front: 18, rear: 11-46

HANDLEBAR

BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree

GRIPS

BBB Cobra BHG-96

STEM

BBB, aluminium, 65mm

HEADSET

Acros AZX-212 R5AH

SADDLE

FOCUS Sport Saddle

SEATPOST

JD low dropper YSP 15, 31.6 mm, internal

BRAKES

Shimano BR-M520, 200 mm / 180 mm

BRAKE

Disc

WHEELSET

DT Swiss H1900, 622-30, 148x12 mm / 110x15 mm

TIRES

Schwalbe Racing Ralph Performance 2.25

FENDER

SR Suntour fork mudguard, plastic

HEADLIGHT

Supernova Mini 2, power LED, custom

GEARS

SIZE

48,40,36,44,52

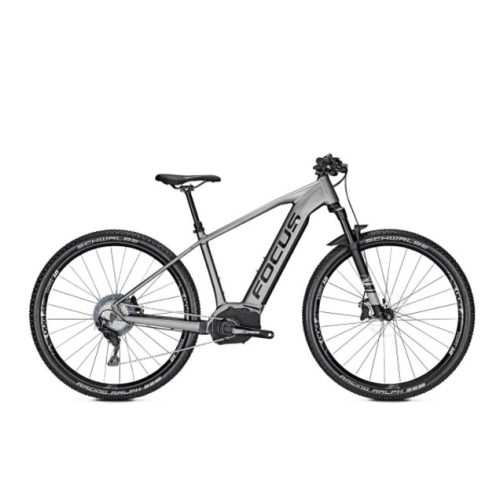

Focus Jarifa2 6.9 ebike
